Thermostats OJ ETN4-1999

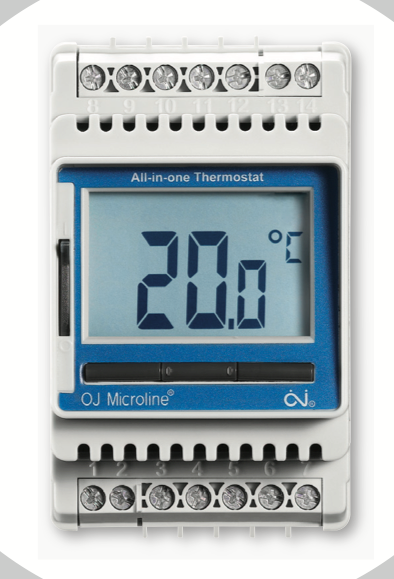

The ETN4-1999 is an electronic all-in-one thermostat for 1-2 externally mounted NTC sensors. Possible applications include electric underfloor heating, frost protection, ice and snow melting.Easy to mount on a DIN rail and to use with 12kOhm sensors. The desired temperature can be set from -19.5 - 70°C. The large display allows a quick overview, 3 navigation buttons guide you through the intuitive menu.

Features-Lit display

Technical data Mounting type: DIN rail Operating voltage: 230 voltsMax. Switching capacity: 16A / 3600 WattControl mode: two-point control ON-OFFControl temperature range: -19.5-70 °CFloor limit temperature: -19.5-70 °CNight setback: -19.5-30 °CSensor: External (12k Ohm)Temperature control range (external): -19.5-70°C (floor sensor)Frost protection: 0-10 °CDisplay/illumination: Yes/YesIP protection class: IP20Dimensions: 88x53x58mm (HxWxD)Display: 25x38 mm (HxW)

Scope of delivery 1x thermostat1x floor sensor (12k Ohm)1x instructions
