Thermal Mass - Smart Control Panel for Electric Heating

Store / Thermostats and Accessories
$425.00
In stock: 2 available
Product Details

The BCC-2501-HT-GB is a wall-mounted smart control panel designed for electric heating systems, compatible with European standard bases. It integrates temperature control, ZigBee gateway functionality, and smart home scene control. The panel connects via Wi-Fi, Bluetooth, or ZigBee and pairs with the Smart Life app for advanced scheduling, scene creation, and device integration.

Key features include:

* Touch screen control with swipe-based navigation
* Local thermostat with weekly programmable scheduling
* Compatibility with Tuya smart devices
* Integrated ZigBee gateway for smart home expansion
* Supports external and internal sensors
* Scene control via mobile app (Smart Life)
* Network and display settings customization
* Safety guidelines for professional installation
* 24-month warranty

Take full control of your electric heating system with the BCC-2501-HT-GB Smart Control Panel. Designed for modern homes, this sleek and intuitive panel integrates seamlessly with electric heating systems such as heating films, cables, and carbon crystal floor heating. Featuring a responsive touch screen and stylish design, it puts powerful automation at your fingertips.

✅ Key Features:
Smart Temperature Control: Built-in thermostat with advanced weekly scheduling and dual sensor support (internal & external).
ZigBee Gateway: Expand your smart home by adding and managing ZigBee-compatible devices directly from the panel.
App Control: Connects to the Smart Life app via 2.4GHz Wi-Fi or Bluetooth for scene creation, remote control, and device synchronization.

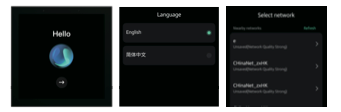

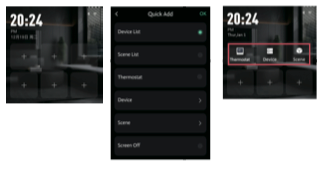

Intuitive Touchscreen Interface: Swipe to access thermostat, device list, scenes, and settings with ease.
Smart Scene Setup: Automate home routines by creating Tap-to-Run scenes within the app.
Customizable Display: Adjust screen brightness, screen saver, language, and alerts to suit your preferences.
Safe & Reliable Installation: Designed for standard EU wall boxes, with fire-resistant requirements and professional install guidelines.
Elegant Design: Compact form factor (86×86mm), fits flush to the wall with a modern minimalist look.
🔧 **Specifications:**

* Power Supply: 95–240V AC, 50/60Hz
* Load: Max 16A
* Operating Temp: -5°C to 45°C
* Connectivity: Wi-Fi, Bluetooth, ZigBee
* Humidity: 5% – 95% RH (non-condensing)
* Size: 86×86×38.8mm (with base)

🛡️ Warranty: 24-month limited warranty

Perfect for homeowners and installers seeking smart, centralised control over electric heating and connected devices. Elevate your home’s comfort and energy efficiency with intelligent automation today.
